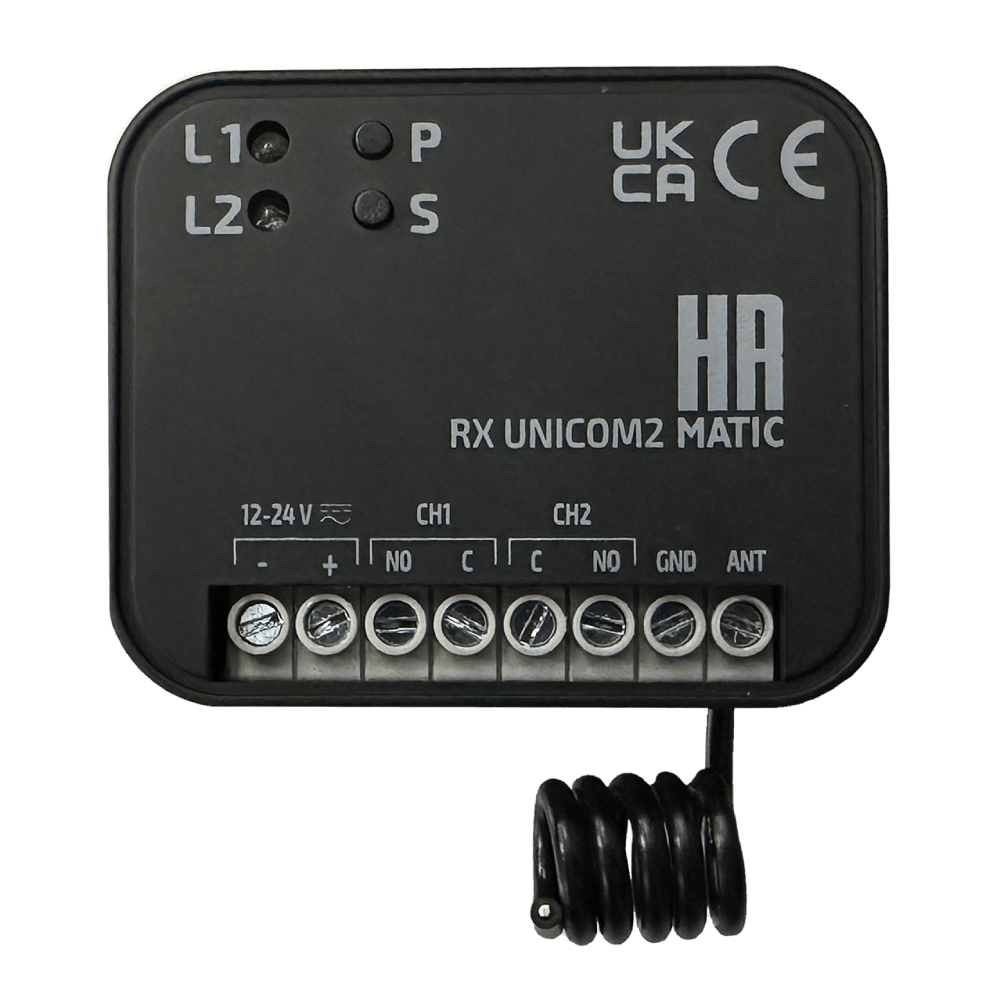

Universal Receiver RX UNICOM2
Universal Receiver RX UNICOM2 - Image 2

Universal Receiver RX UNICOM2

Universal 2-channel multi-frequency receiver.
Protected in a convenient, miniaturized enclosure of refined design, the
HR RXUNICOM2 receiver provides a viable alternative to common receivers.
The HR RXUNICOM2 receiver can store fixed codes and variable code codes at frequencies from 433.92 to 868 MHz

pdf Manual.

Category:

Description

Universal 2-channel multi-frequency receiver.
Protected in a convenient, miniaturized enclosure of refined design, the
HR RXUNICOM2 receiver provides a viable alternative to common receivers.
The HR RXUNICOM2 receiver can store fixed codes and variable code codes at frequencies from 433.92 to 868 MHz

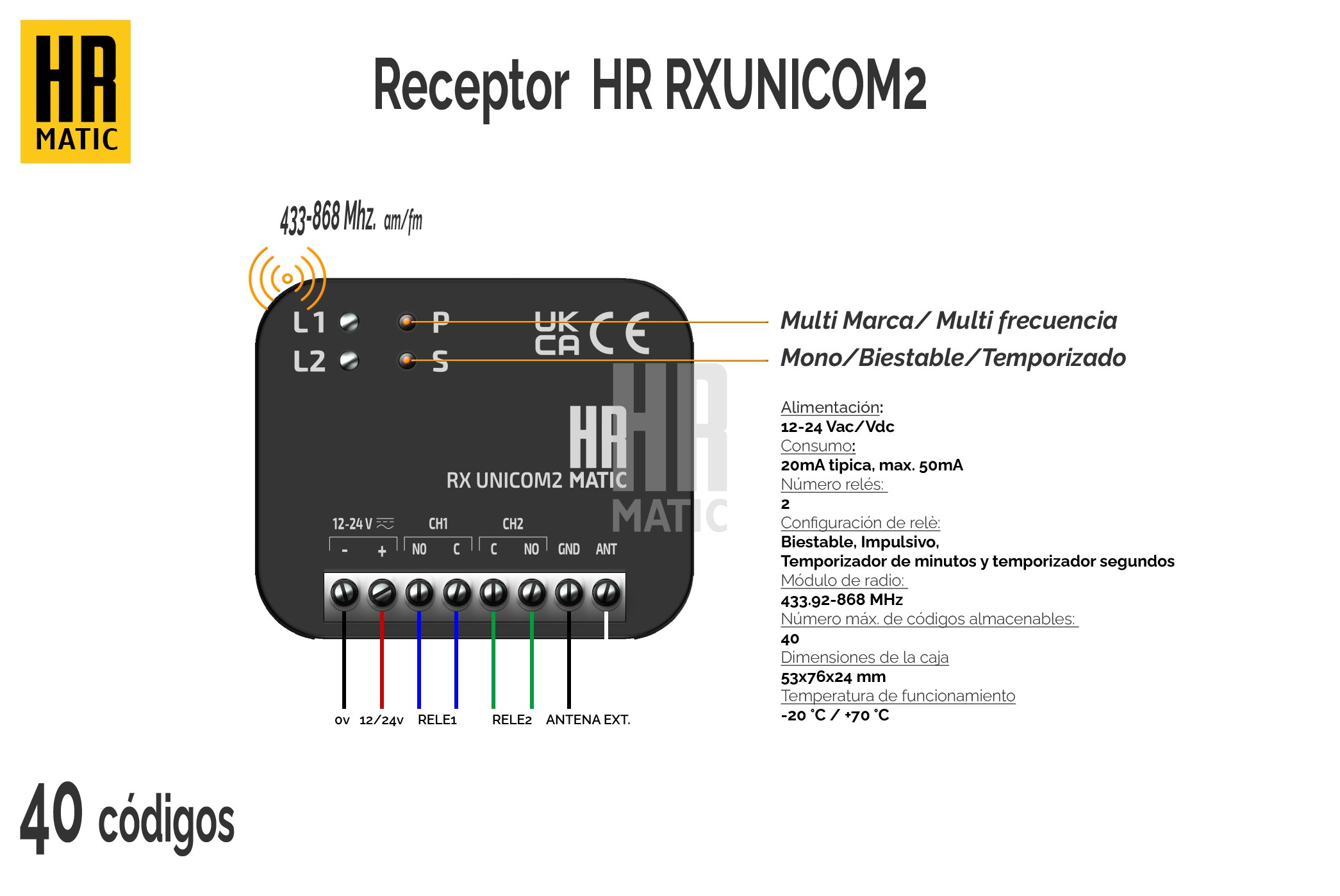

Technical Specifications:
Power supply: 12-24 Vac/Vdc
Current consumption: 20 mA typical, max. 50mA
Relay Number: 2
Relay Settings: Bistable, Pulse, Minute Timer, and Second Timer
Radio Module: Multi-Frequency
Max. number of codes stored: 40
Case dimensions: 53x76x24 mm
Operating temperature: -20°C / +70°C
